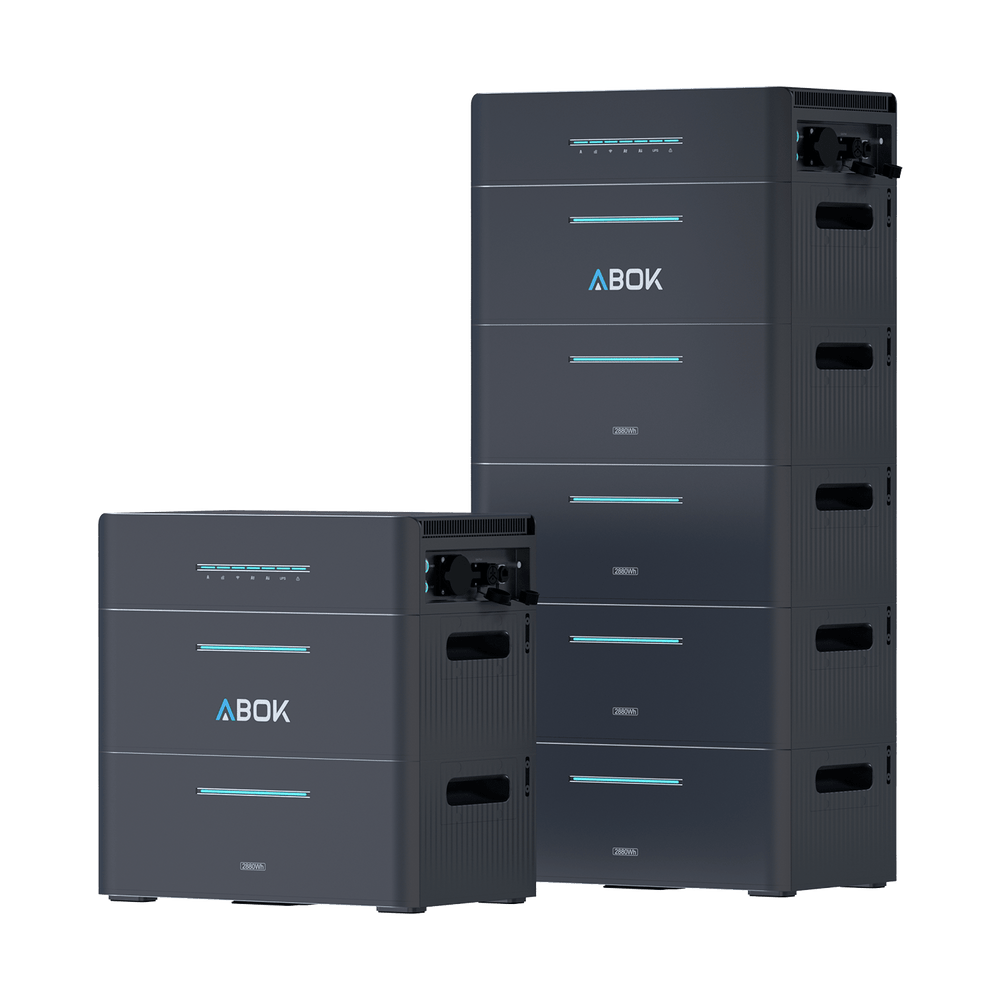

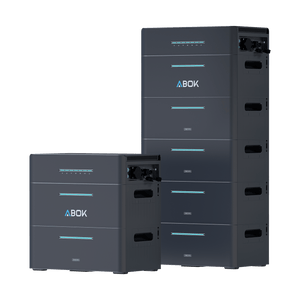

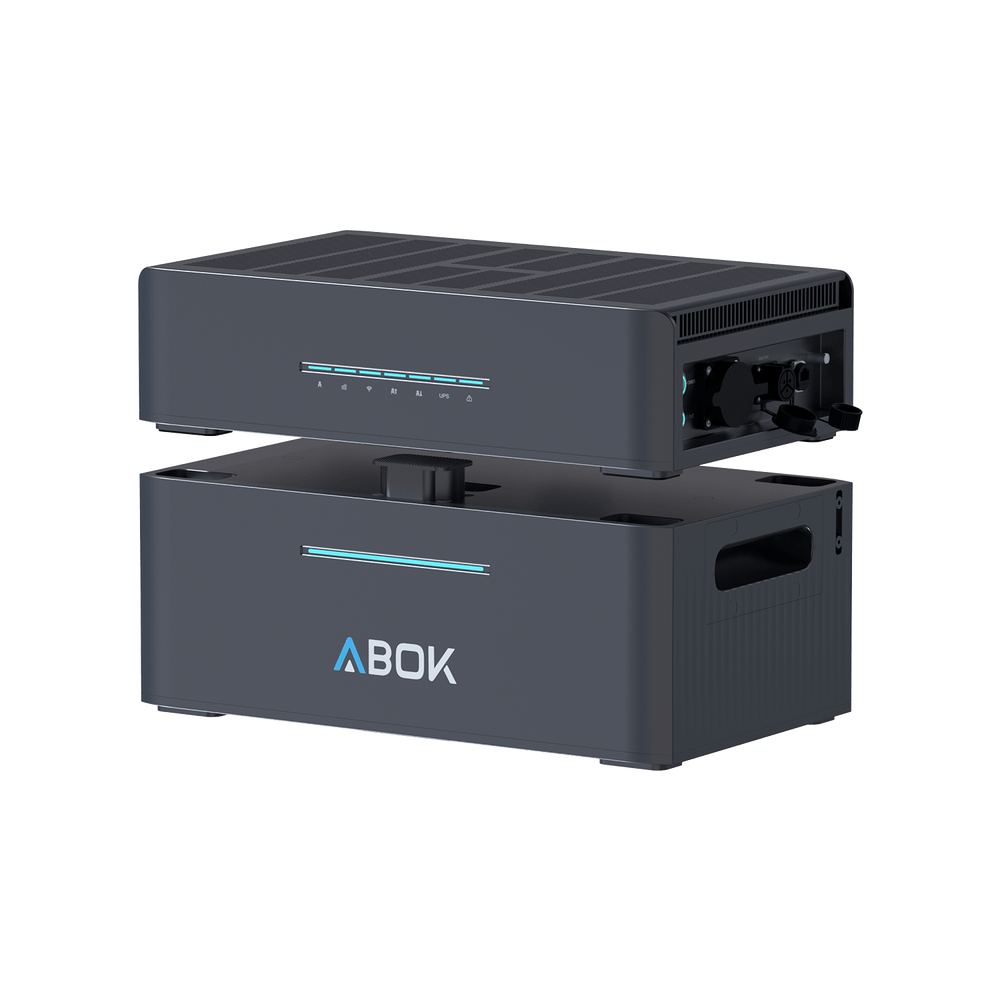

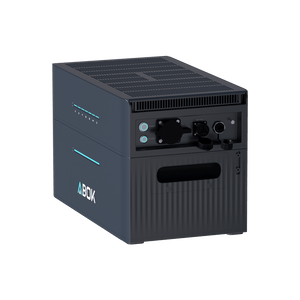

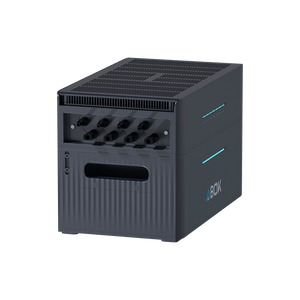

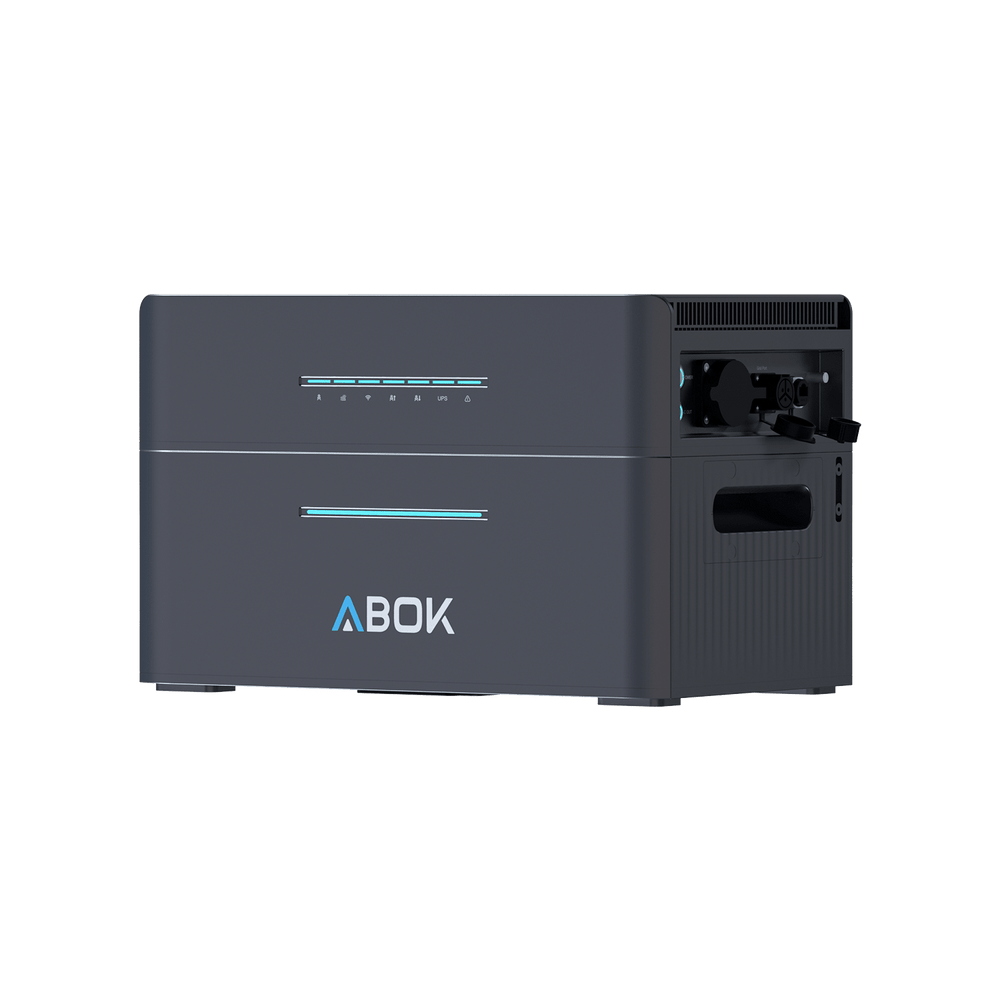

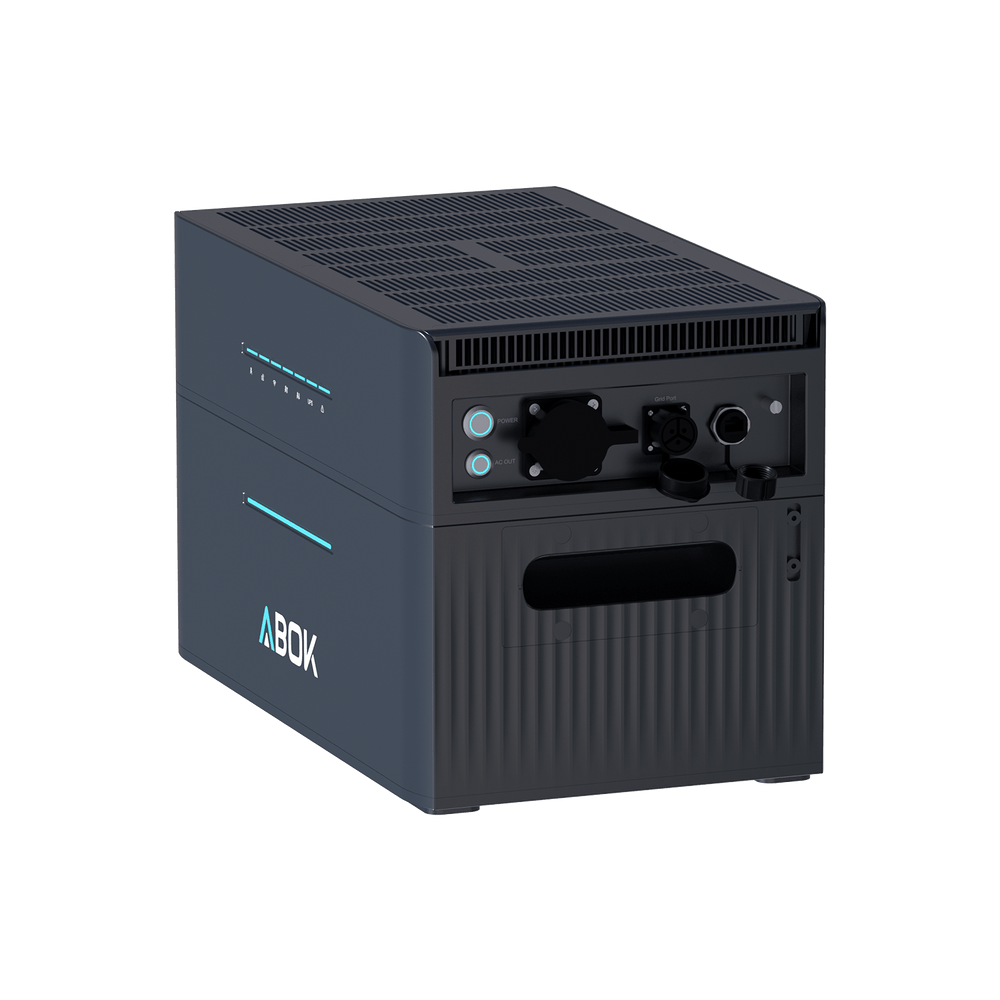

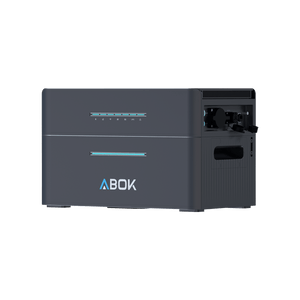

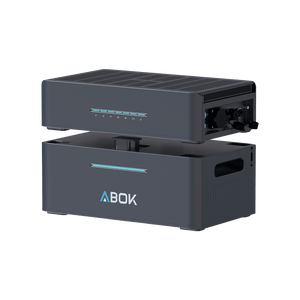

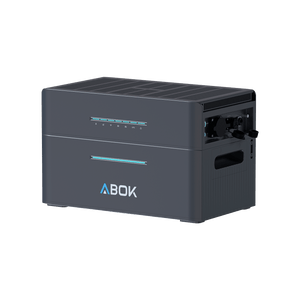

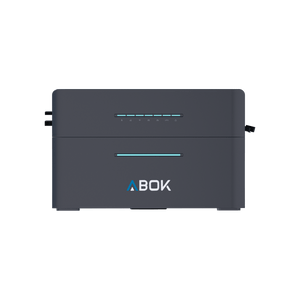

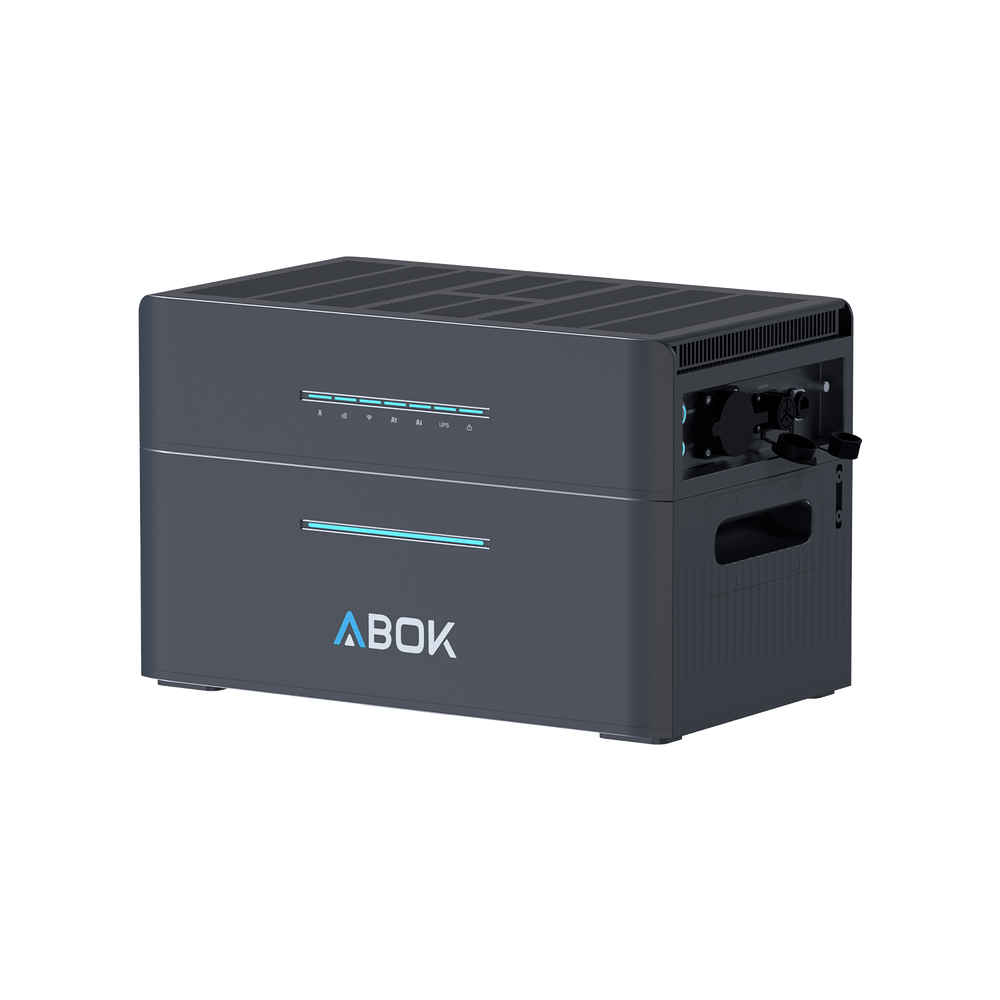

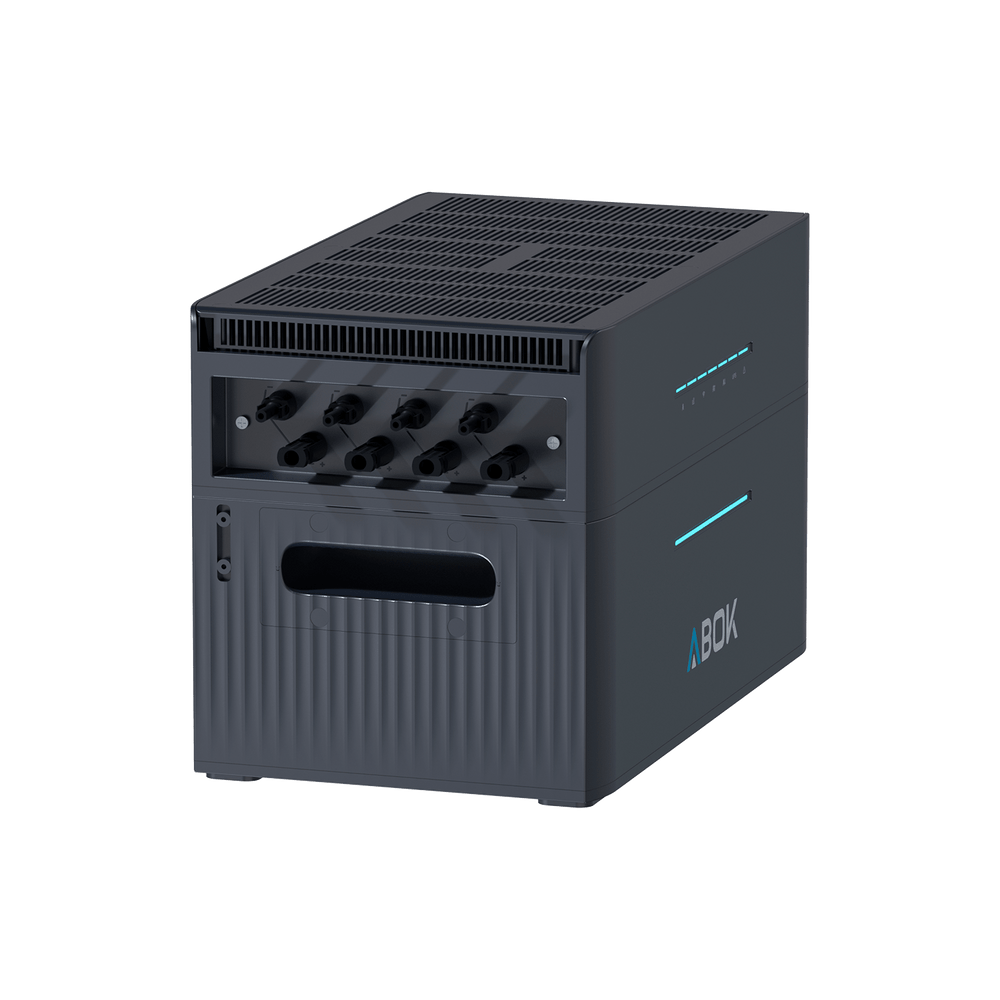

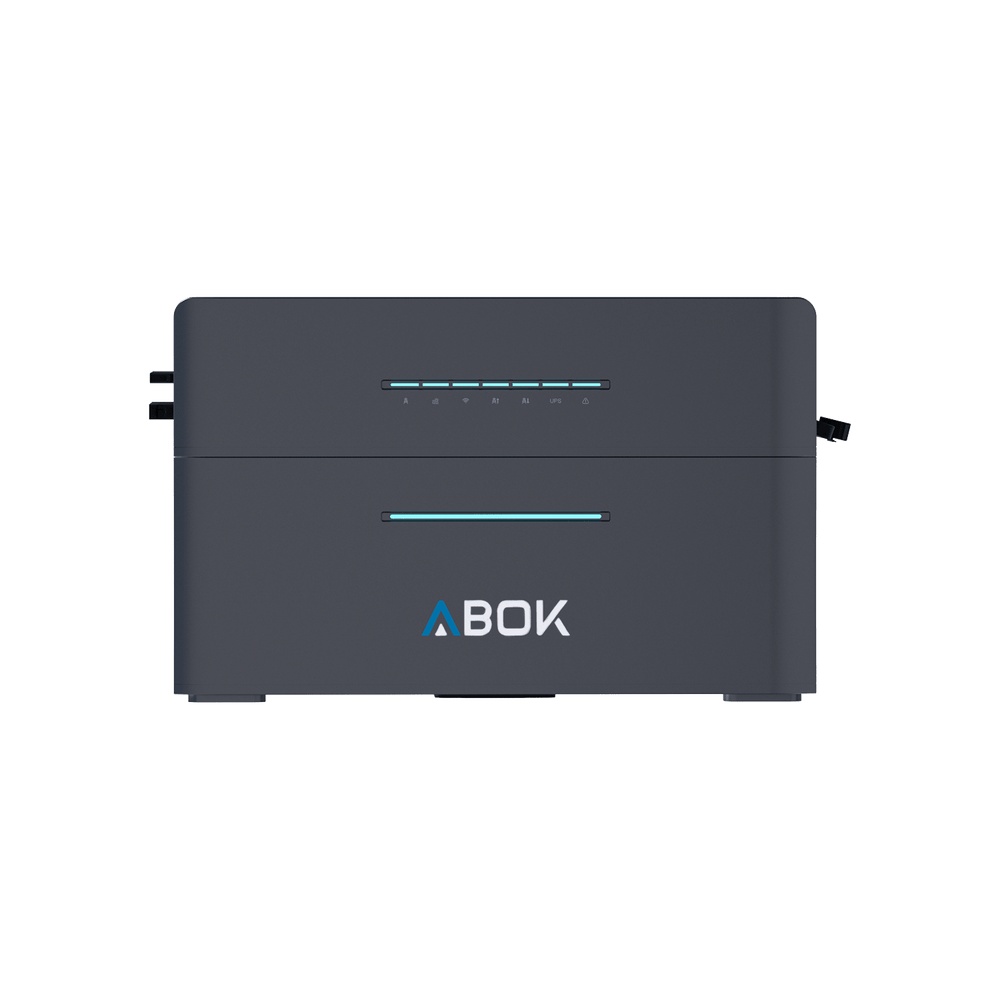

Brio S Balkon-Solaranlage
€0,00
-Plug&Play Installation in 5 Minuten.
-4 MPPT, max. 3200W Solareingang.
-MAX.3600W On-Grid AC-Ausgang.
-MAX.3000W On-Grid AC-Eingang.
-MAX.3600W Notstromversorgung.
-IP65 wasserdicht.
-Startet bei 2,88 kWh, erweiterbar auf bis zu 5 Einheiten & 14,4 kWh.
-APP-Fernüberwachung.
-EPS-Umschaltung <10ms.
Spezifikationen
Spezifikationen
Spezifikationen
BATTERY PACK
Capacity
2880Wh
Series-Parallel
15S3P
Pack Voltage
48V
Ampere-hour
60Ah
EXTRA BATTERY
Capacity
2880Wh
Expandable in Parallel
4
OUTPUT
AC Output Power (EU)
3600W
AC Output Ports (EU)
Type F*1
INPUT
AC Input Power (EU)
3000W
PV Input Voltage
11.5-55V
PV Input Power
3200W
FEATURES
LED
✔
LAN
✔
PV
✔
UPS
✔
App Control
✔
SPECIFICATIONS

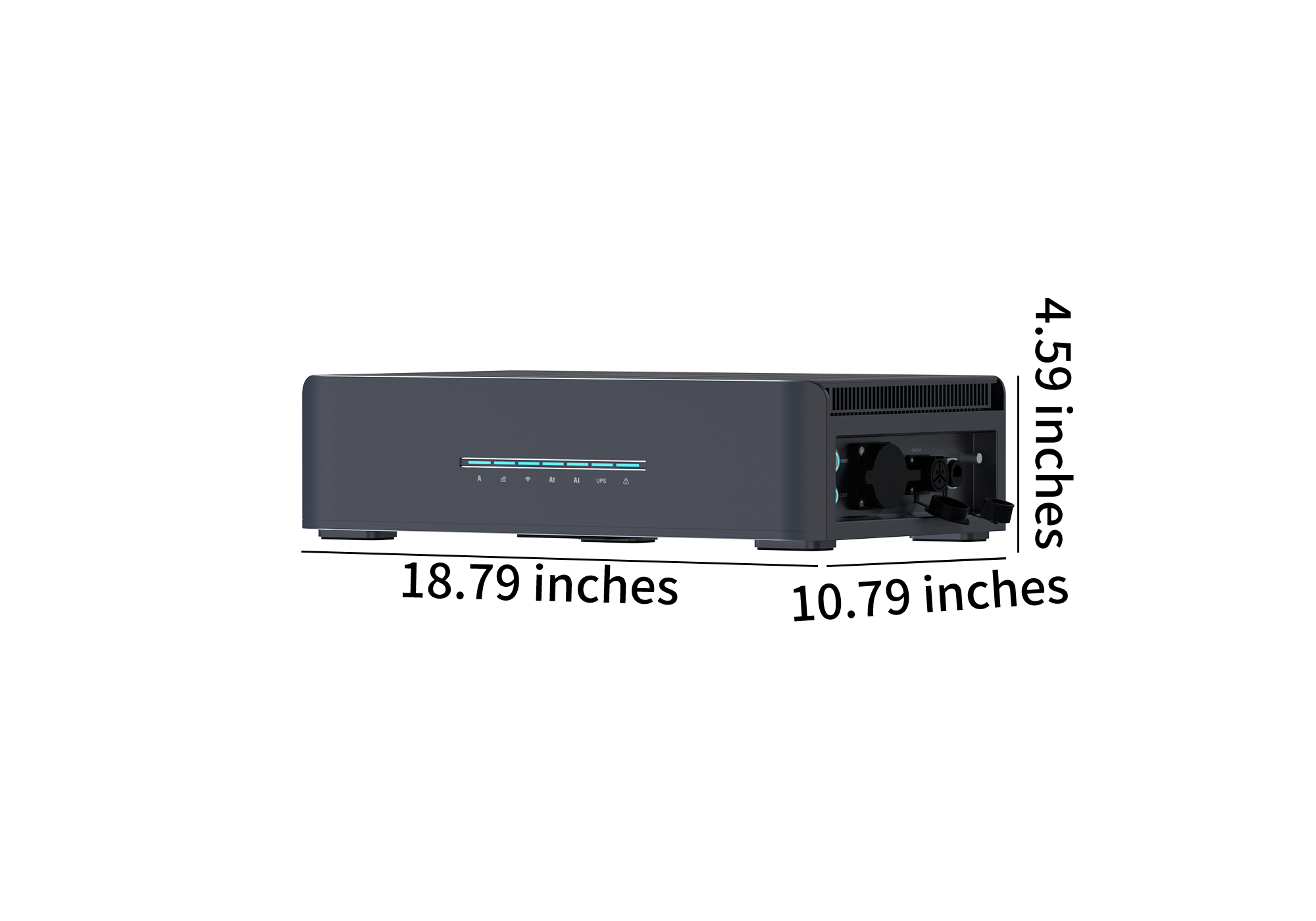

Size
477.4*274.3*116.6mm 18.79*10.79*4.59in
Operating Temperature
-20℃-55℃
BATTERY PACK
Capacity
2880Wh
Series-Parallel
15S3P
Pack Voltage
48V
Ampere-hour
60Ah
EXTRA BATTERY
Capacity
2880Wh
Expandable in Parallel
4
OUTPUT
INPUT
PV Input Voltage
11.5-55V
PV Input Power
3200W
FEATURES
LED
✔
LAN
✔
PV
✔
UPS
✔
App Control
✔
SPECIFICATIONS
Size
477.4*274.3*116.6mm
18.79*10.79*4.59in
Operating Temperature
-20℃-55℃
